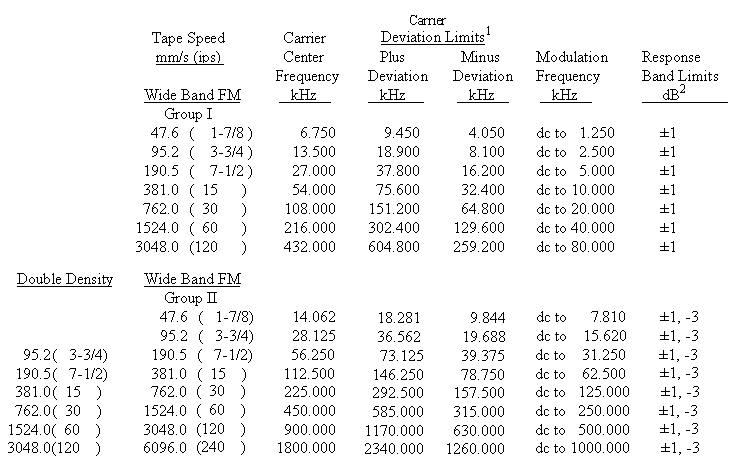

TABLE 6-7. WIDE BAND AND DOUBLE DENSITY FM RECORD PARAMETERS |
 |
|
1. Input voltage levels per
subparagraph 6.4.1. 2. Frequency response referred to 1-kHz output for FM channels 13.5 kHz and above, and 100 Hz for channels below 13.5 kHz. |
TABLE 6-7. WIDE BAND AND DOUBLE DENSITY FM RECORD PARAMETERS |
|
|
1. Input voltage levels per
subparagraph 6.4.1. 2. Frequency response referred to 1-kHz output for FM channels 13.5 kHz and above, and 100 Hz for channels below 13.5 kHz. |
