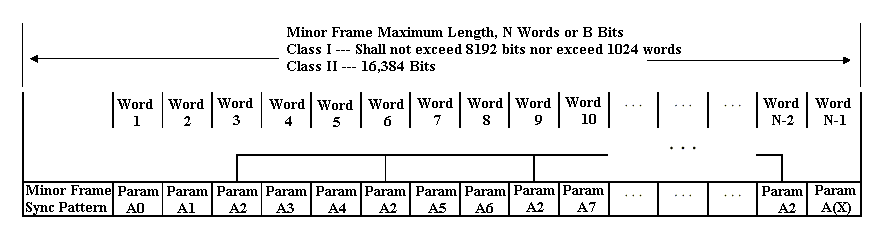

Figure C-4.   Major Frame Length = Minor Frame Maximum Length.

Parameters A0, A1, A3, A4, A5, A6, ... , A(X) are sampled once each Minor Frame. Parameter A2 is supercommutated on the Minor Frame. The rate of A2 is equal to the number of samples multiplied by the Minor Frame Rate.
