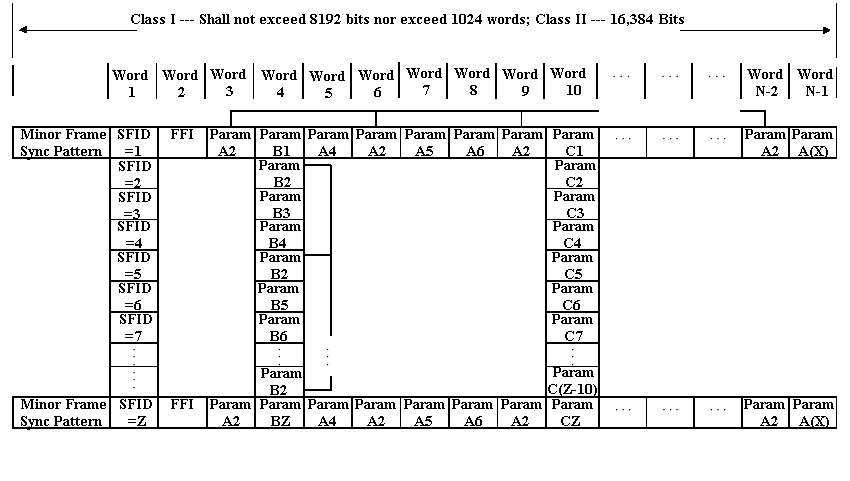

Figure C-5.   Major Frame Length = Minor Frame Maximum Length multiplied by Z.

Minor Frame Maximum Length, N Words or B Bits The Frame Format Identifier (Word 2) is shown in the preferred position as the first word following the ID counter. Parameters B1, B3, B4, B5, . . . , BZ, and C1, C2, C3, . . . , CZ are sampled once each Subframe, at 1/Z multipled by the Minor Frame rate. Parameter B2 is supercommutated on the Subframe and is sampled at less than the Minor Frame rate, but greater than the Subframe rate.
