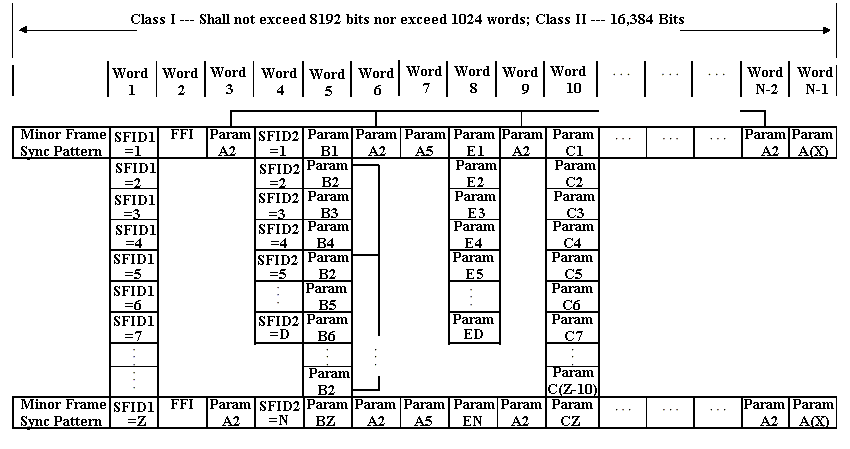

Figure C-6.   Major Frame Length = Minor Frame Maximum Length multiplied by Z.

Minor Frame Maximum Length, N Words or B Bits SFID1 and SFID2 are subframe counters. SFID1 has a depth Z<256; SFID2 has a depth D which is <Z. Z divided by D is not an integer. Location of the B and C parameters are given by the Minor Frame word number and the SFID1 counter. Location of the E parameters are given by the Minor Frame word number and the SFID2 counter.
