CHAPTER 9

TELEMETRY ATTRIBUTES TRANSFER STANDARD, Continued....

9.5.6.2 PCM Measurement Description (D)

9.5.6.2 PCM Measurement Description (D). Table 9-6 and figure 9-7 contain the PCM Measurement Descriptions. The descriptions define each measurand or data item of interest within the frame format specified in the PCM attributes. Table 9-6 includes the measurement name, which links the measurement to the Data Conversion Attributes Group.

PCM Measurement Description Group (D)

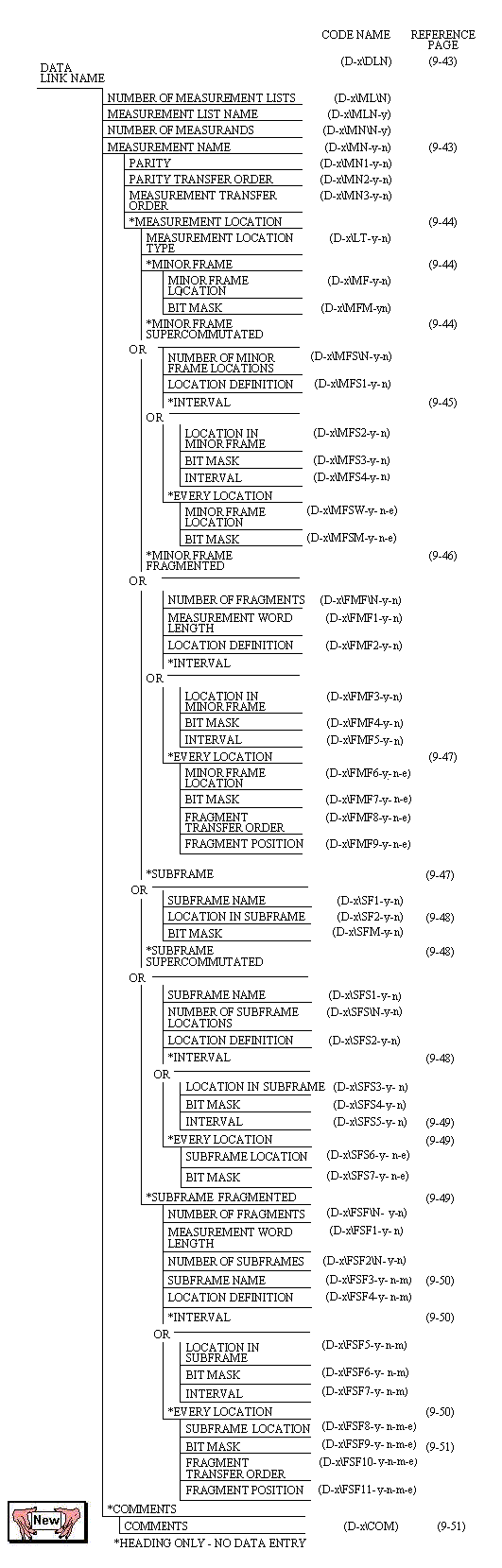

Figure 9-7. PCM Measurement Description Group (D).

TABLE 9-6. PCM MEASUREMENT DESCRIPTION GROUP (D)
R O W	PARAMETER	MAX FIELD SIZE	CODE NAME	DEFINITION
1	DATA LINK NAME	32	D-x\DLN	PROVIDE THE DATA LINK NAME.
2	NUMBER OF MEASUREMENT LISTS	2	D-x\ML\N	SPECIFY THE NUMBER OF MEASUREMENTS LISTS TO BE PROVIDED.
3	MEASUREMENT LIST NAME	32	D-x\MLN-y	PROVIDE THE MEASUREMENT LIST NAME ASSOCIATED WITH THE FOLLOWING ATTRIBUTES. THE FOLLOWING INFORMATION WILL HAVE TO BE REPEATED FOR EACH MEASUREMENT LIST IDENTIFIED IN THE PCM FORMAT ATTRIBUTES GROUP.
4	NUMBER OF MEASURANDS	4	D-x\MN\N-y	SPECIFY THE NUMBER OF MEASURANDS INCLUDED WITHIN THIS MEASUREMENT LIST.
5	MEASUREMENT NAME	32	D-x\MN-y-n	MEASURAND NAME.
6	PARITY	2	D-x\MN1-y-n	SPECIFY PARITY: EVEN – ‘EV’ ODD – ‘OD’ NONE – ‘NO’ DEFAULT TO MINOR FRAME DEFINITION – ‘DE’.
7	PARITY TRANSFER ORDER	1	D-x\MN2-y-n	PARITY BIT LOCATION LEADS WORD – ‘L’ TRAILS WORD – ‘T’ MINOR FRAME DEFAULT – ‘D’.
8	MEASUREMENT TRANSFER ORDER	1	D-x\MN3-y-n	MOST SIGNIFICANT BIT FIRST – ‘M’ LEAST SIGNIFICANT BIT FIRST – ‘L’ DEFAULT – ‘D’.
MEASUREMENT LOCATION
9	MEASUREMENT LOCATION TYPE	4	D-x\LT-y-n	SPECIFY THE NATURE OF THE LOCATION OF THIS MEASURAND. MINOR FRAME – ‘MF’ MINOR FRAME SUPERCOMMUTATED – ‘MFSC’ MINOR FRAME FRAGMENTED – ‘MFFR’ SUBFRAME – ‘SF’ SUBFRAME SUPERCOMMUTATED – ‘SFSC’ SUBFRAME FRAGMENTED – ‘SFFR’.
MINOR FRAME
10	MINOR FRAME LOCATION	4	D-x\MF-y-n	THE MINOR FRAME WORD POSITION OF THE MEASUREMENT.
11	BIT MASK	64	D-x\MFM-y-n	BINARY STRING OF 1s AND 0s TO IDENTIFY THE BITS IN A WORD LOCATION WHICH ARE ASSIGNED TO THIS MEASUREMENT. IF THE FULL WORD IS USED FOR THIS MEASUREMENT ENTER ‘FW’. LEFT MOST BIT CORRESPONDS TO FIRST BIT TRANSMITTED.
MINOR FRAME SUPERCOMMUTATED
12	NUMBER OF MINOR FRAME LOCATIONS	4	D-x\MFS\N-y-n	NUMBER OF WORD POSITIONS THAT THE SUPERCOMMUTATED CHANNEL OCCUPIES, N.
13	LOCATION DEFINITION	1	D-x\MFS1-y-n	TO SPECIFY THE INTERVAL ENTER ‘I’. TO SPECIFY EVERY WORD LOCATION ENTER ‘E’.
INTERVAL
14	LOCATION IN MINOR FRAME	4	D-x\MFS2-y-n	SPECIFY THE FIRST WORD LOCATION IN THE MINOR FRAME.
15	BIT MASK	64	D-x\MFS3-y-n	BINARY STRING OF 1s AND 0s TO IDENTIFY THE BITS IN A WORD LOCATION WHICH ARE ASSIGNED TO THIS SUPERCOMMUTATED MEASUREMENT. IF THE FULL WORD IS USED FOR THIS MEASUREMENT ENTER ‘FW’. LEFT MOST BIT CORRESPONDS TO FIRST BIT TRANSMITTED.
16	INTERVAL	3	D-x\MFS4-y-n	SPECIFY THE INTERVAL COUNT WHICH IS THE OFFSET FROM THE FIRST WORD LOCATION AND EACH SUBSEQUENT LOCATION.
EVERY LOCATION
17	MINOR FRAME LOCATION	4	D-x\MFSW- y-n-e	ENTER THE MINOR FRAME WORD POSITION OF THE MEASUREMENT.
18	BIT MASK	64	D-x\MFSM- y-n-e	BINARY STRING OF 1'S AND 0'S TO IDENTIFY THE BITS IN A WORD LOCATION WHICH ARE ASSIGNED TO THIS SUPERCOMMUTATED MEASUREMENT. IF THE FULL WORD IS USED FOR THIS MEASUREMENT ENTER "FW". LEFT MOST BIT CORRESPONDS TO FIRST BIT TRANSMITTED.
ENTER THE MINOR FRAME LOCATION AND BIT MASK FOR EACH OF THE WORD POSITIONS THAT THE SUPERCOMMUTATED CHANNEL OCCUPIES, (N) LOCATIONS.
MINOR FRAME FRAGMENTED
19	NUMBER OF FRAGMENTS	1	D-x\FMF\N-y-n	NUMBER OF MINOR FRAME WORD POSITIONS THAT THE FRAGMENTED CHANNEL OCCUPIES, N.
20	MEASUREMENT WORD LENGTH	3	D-x\FMF1-y-n	TOTAL LENGTH OF THE RECONSTRUCTED BINARY DATA WORD.
21	LOCATION DEFINITION	1	D-x\FMF2-y-n	TO SPECIFY THE INTERVAL ENTER ‘I’. TO SPECIFY EVERY WORD LOCATION ENTER ‘E’.
INTERVAL
22	LOCATION IN MINOR FRAME	4	D-x\FMF3-y-n	SPECIFY THE FIRST WORD POSITION THAT THE FRAGMENTED WORD OCCUPIES IN THE MINOR FRAME.
23	BIT MASK	64	D-x\FMF4-y-n	BINARY STRING OF 1s AND 0s TO IDENTIFY THE BITS IN A WORD POSITION WHICH ARE ASSIGNED TO THIS FRAGMENTED CHANNEL, IF THE FULL WORD IS USED FOR THIS MEASUREMENT ENTER ‘FW’. LEFT MOST BIT CORRESPONDS TO FIRST BIT TRANSMITTED.
24	INTERVAL	4	D-x\FMF5-y-n	SPECIFY THE INTERVAL WHICH IS THE OFFSET FROM THE FIRST WORD LOCATION AND EACH SUBSEQUENT LOCATION.
EVERY LOCATION
25	MINOR FRAME LOCATION	4	D-x\FMF6- y-n-e	ENTER THE MINOR FRAME WORD POSITION OF THE MEASUREMENT.
26	BIT MASK	64	D-x\FMF7- y-n-e	BINARY STRING OF 1s AND 0s TO IDENTIFY THE BITS IN A WORD POSITION WHICH ARE ASSIGNED TO THIS FRAGMENTED MEASUREMENT. IF THE FULL WORD IS USED FOR THIS MEASUREMENT ENTER ‘FW’. LEFT MOST BIT CORRESPONDS TO FIRST BIT TRANSMITTED.
27	FRAGMENT TRANSFER ORDER	1	D-x\FMF8- y-n-e	MOST SIGNIFICANT BIT FIRST – ‘M’, LEAST SIGNIFICANT BIT FIRST – ‘L’, DEFAULT – ‘D’.
28	FRAGMENT POSITION	1	D-x\FMF9- y-n-e	A NUMBER FROM 1 TO N SPECIFYING POSITION OF THE FRAGMENT WITHIN THE RECONSTRUCTED BINARY DATA WORD. (1 CORRESPONDS TO MOST SIGNIFICANT FRAGMENT).
ENTER THE MINOR FRAME LOCATION AND BIT MASK FOR EACH OF THE WORD POSITIONS THAT THE FRAGMENTED CHANNEL OCCUPIES, (N) LOCATIONS.
SUBFRAME
29	SUBFRAME NAME	8	D-x\SF1-y-n	ENTER THE SUBFRAME NAME.
30	LOCATION IN SUBFRAME	3	D-x\SF2-y-n	SPECIFY THE WORD NUMBER IN THE SUBFRAME.
31	BIT MASK	64	D-x\SFM-y-n	BINARY STRING OF 1s AND 0s TO IDENTIFY THE BITS IN A WORD LOCATION WHICH ARE ASSIGNED TO THIS MEASUREMENT. IF THE FULL WORD IS USED FOR THE MEASUREMENT ENTER ‘FW’. LEFT MOST BIT CORRESPONDS TO FIRST BIT TRANSMITTED.
SUBFRAME SUPERCOMMUTATED
32	SUBFRAME NAME	8	D-x\SFS1-y-n	ENTER THE SUBFRAME NAME.
33	NUMBER OF SUBFRAME LOCATIONS	3	D-x\SFS\N-y-n	NUMBER OF SUBFRAME WORD POSITIONS THAT THE SUPERCOMMUTATED CHANNEL OCCUPIES.
34	LOCATION DEFINITION	1	D-x\SFS2-y-n	TO SPECIFY: INTERVAL ENTER ‘I’ EVERY WORD ENTER ‘E’.
INTERVAL
35	LOCATION IN SUBFRAME	3	D-x\SFS3-y-n	SPECIFY THE FIRST WORD POSITION THAT THE SUPERCOMMUTATED WORD OCCUPIES IN THE SUBFRAME.
36	BIT MASK	64	D-x\SFS4-y-n	BINARY STRING OF 1s AND 0s TO IDENTIFY THE BIT LOCATIONS IN A WORD POSITION WHICH ARE ASSIGNED TO THIS SUPERCOMMUTATED CHANNEL, IF THE FULL WORD IS USED FOR THIS MEASUREMENT ENTER ‘FW’. LEFT MOST BIT CORRESPONDS TO FIRST BIT TRANSMITTED.
37	INTERVAL	3	D-x\SFS5-y-n	SPECIFY THE INTERVAL WHICH IS THE OFFSET FROM THE FIRST WORD LOCATION AND EACH SUBSEQUENT LOCATION.
EVERY LOCATION
38	SUBFRAME LOCATION	3	D-x\SFS6-y-n-e	ENTER THE SUBFRAME WORD POSITION OF THE MEASUREMENT.
39	BIT MASK	64	D-x\SFS7-y-n-e	BINARY STRING OF 1s AND 0s TO IDENTIFY THE BIT LOCATIONS IN A WORD POSITION WHICH ARE ASSIGNED TO THIS SUPERCOMMUTATED MEASUREMENT. IF THE FULL WORD IS USED FOR THIS MEASUREMENT ENTER ‘FW’. LEFT MOST BIT CORRESPONDS TO FIRST BIT TRANSMITTED.
ENTER THE SUBFRAME LOCATION AND BIT MASK FOR EACH OF THE WORD POSITIONS THAT THE SUPERCOMMUTATED CHANNEL OCCUPIES, (N) LOCATIONS.
SUBFRAME FRAGMENTED
40	NUMBER OF FRAGMENTS	1	D-x\FSF\N-y-n	NUMBER OF SUBFRAME WORD POSITIONS THAT THE FRAGMENTED CHANNEL OCCUPIES, N.
41	MEASUREMENT WORD LENGTH	3	D-x\FSF1-y-n	TOTAL LENGTH OF THE RECONSTRUCTED BINARY DATA WORD.
42	NUMBER OF SUBFRAMES	1	D-x\ FSF2\N-y-n	NUMBER OF SUBFRAMES CONTAINING THE FRAGMENTS.
43	SUBFRAME NAME	8	D-x\ FSF3-y-n-m	ENTER THE SUBFRAME NAME.
44	LOCATION DEFINITION	1	D-x\ FSF4-y-n-m	TO SPECIFY: INTERVAL – ‘I’ EVERY WORD – ‘E’.
INTERVAL
45	LOCATION IN SUBFRAME	3	D-x\ FSF5-y-n-m	SPECIFY THE FIRST WORD POSITION THAT THE FRAGMENTED WORD OCCUPIES IN THE SUBFRAME.
46	BIT MASK	64	D-x\ FSF6-y-n-m	BINARY STRING OF 1s AND 0s TO IDENTIFY THE BIT LOCATIONS IN A WORD POSITION WHICH ARE ASSIGNED TO THIS FRAGMENTED CHANNEL, IF THE FULL WORD IS USED FOR THIS MEASUREMENT ENTER ‘FW’. LEFT MOST BIT CORRESPONDS TO FIRST BIT TRANSMITTED.
47	INTERVAL	3	D-x\ FSF7-y-n-m	SPECIFY THE INTERVAL WHICH IS THE OFFSET FROM THE FIRST WORD LOCATION AND EACH SUBSEQUENT LOCATION.
EVERY LOCATION
48	SUBFRAME LOCATION	3	D-x\ FSF8-y-n-m-e	ENTER THE SUBFRAME WORD POSITION OF THE MEASUREMENT.
49	BIT MASK	64	D-x\ FSF9-y-n-m-e	BINARY STRING OF 1s AND 0s TO IDENTIFY THE BIT LOCATIONS IN A WORD POSITION WHICH ARE ASSIGNED TO THIS FRAGMENTED MEASUREMENT. IF THE FULL WORD IS USED FOR THIS MEASUREMENT ENTER ‘FW’. LEFT MOST BIT CORRESPONDS TO FIRST BIT TRANSMITTED.
50	FRAGMENT TRANSFER ORDER	1	D-x\ FSF10-y-n-m-e	MOST SIGNIFICANT BIT FIRST – ‘M’, LEAST SIGNIFICANT BIT FIRST – ‘L’, DEFAULT- ‘D’.
51	FRAGMENT POSITION	1	D-x \FSF11-y-n-m-e	A NUMBER FROM 1 TO N SPECIFYING POSITION OF THIS FRAGMENT WITHIN THE RECONSTRUCTED BINARY DATA WORD. (1 CORRESPONDS TO MOST SIGNIFICANT FRAGMENT).
ENTER THE SUBFRAME LOCATION AND BIT MASK FOR EACH OF THE WORD POSITIONS THAT THE FRAGMENTED CHANNEL OCCUPIES, (N) LOCATIONS.
REPEAT THE ABOVE ENTRIES, AS APPROPRIATE FOR EACH SUBFRAME THAT CONTAINS THE COMPONENTS OF THE FRAGMENTED WORD.
COMMENTS
52	COMMENTS	3200	D-x\COM	PROVIDE ANY ADDITIONAL INFORMATION REQUIRED OR DESIRED.
THIS GROUP WILL CONTAIN A REPETITION OF THE ABOVE INFORMATION UNTIL EACH MEASUREMENT HAS BEEN DEFINED. ANY WORD POSITION NOT INCLUDED WILL BE TREATED AS A SPARE CHANNEL OR A "DON'T CARE" CHANNEL. INFORMATION WILL NOT BE PROCESSED FOR THESE "SPARE" CHANNELS. NOTE THAT MEASUREMENT LIST CHANGES AND FORMAT CHANGES WHICH ARE A PART OF CLASS II SYSTEMS ARE INCLUDED IN THE ABOVE SINCE THE KEY TO THE MEASUREMENT DEFINITION IS THE DATA LINK NAME (FORMAT) AND THE MEASUREMENT LIST.
