9.5.2 General Information (G)



9.5.2 General Information (G). The general information group provides overall program information. Figure 9-2 gives the overall information that is included in this group and Table 9-1 identifies and defines the data required including the dates associated with the detailed information. Since the identification of the data sources is an integral part of the remaining groups, each source must be identified uniquely.

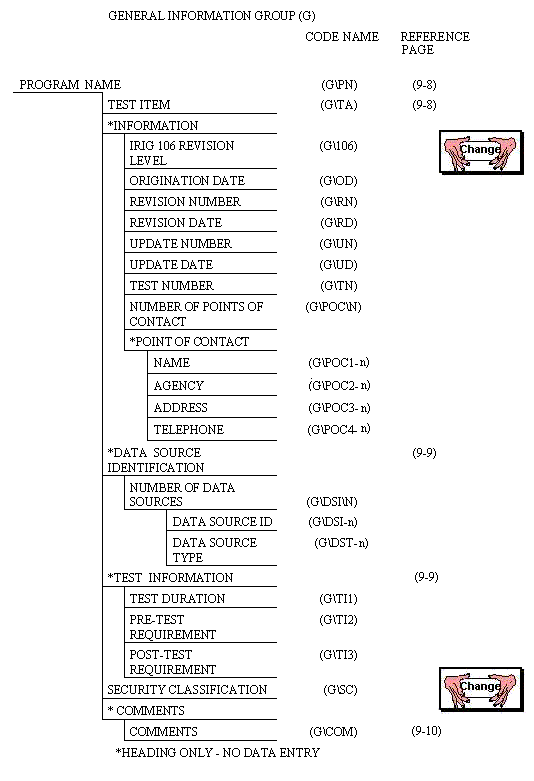

Figure 9-2.  General Information Group (G).


TABLE 9-1. GENERAL INFORMATION GROUP (G)

R
O
W


PARAMETER

MAX
FIELD
SIZE


CODE
NAME


DEFINITION

1

PROGRAM NAME

16

G\PN

NAME OF PROGRAM

2

TEST ITEM

64

G\TA

TEST ITEM DESCRIPTION IN TERMS OF NAME, MODEL, PLATFORM, OR IDENTIFICATION CODE, AS APPROPRIATE.

INFORMATION

3

IRIG 106 REVISION LEVEL

2

G\106

VERSION OF IRIG 106 STANDARD USED TO GENERATE THIS TMATS FILE.

4

ORIGINATION DATE

10

G\OD

DATE OF ORIGINATION OF THIS MISSION CONFIGURATION.
DD - DAY MM - MONTH YYYY - YEAR (MM-DD-YYYY)

5

REVISION NUMBER

4

G\RN

REVISION NUMBER ASSOCIATED WITH THIS MISSION CONFIGURATION.

6

REVISION DATE

10

G\RD

DATE OF REVISION. DD - DAY MM - MONTH YYYY - YEAR (MM-DD-YYYY)

7

UPDATE NUMBER

2

G\UN

UPDATE NUMBER OF CURRENT CHANGE WHICH HAS NOT BEEN INCORPORATED AS A REVISION

8

UPDATE DATE

10

G\UD

DATE OF UPDATE. DD - DAY MM - MONTH YYYY - YEAR (MM-DD-YYYY)

9

TEST NUMBER

16

G\TN

TEST IDENTIFICATION

10

NUMBER OF POINTS OF CONTACT

1

G\POC\N

NUMBER OF POINTS OF CONTACT TO BE GIVEN

11

POINT OF CONTACT:
NAME
AGENCY
ADDRESS
TELEPHONE


24
48
48
20


G\POC1-n
G\POC2-n
G\POC3-n
G\POC4-n

LIST EACH OF THE RESPONSIBLE AGENCIES AND THEIR POINT OF CONTACT.

DATA SOURCE IDENTIFICATION

12

NUMBER OF DATA SOURCES

2

G\DSI\N

SPECIFY THE NUMBER OF DATA SOURCES: FOR RF TELEMETRY SYSTEMS, GIVE THE NUMBER OF CARRIERS; FOR TAPE RECORDED DATA, IDENTIFY THE NUMBER OF TAPE SOURCES.

13

DATA SOURCE ID

32

G\DSI-n

PROVIDE A DESCRIPTIVE NAME FOR THIS SOURCE.
EACH SOURCE IDENTIFIER MUST BE UNIQUE.

14

DATA SOURCE TYPE

3

G\DST-n

SPECIFY THE TYPE OF SOURCE:
RF – ‘RF’ TAPE – ‘TAP’ OTHER – ‘OTH’

PROVIDE THE ABOVE TWO ITEMS FOR EACH DATA SOURCE.

TEST INFORMATION

15

TEST DURATION

4

G\TI1

APPROXIMATE DURATION OF TEST IN HOURS.

16

PRE-TEST REQUIREMENT

1

G\TI2

INDICATE WHETHER A PRE-TEST REQUIREMENT IS APPLICABLE. PROVIDE DETAILS IN COMMENT RECORD (‘Y’ OR ‘N’).

17

POST-TEST REQUIREMENT

1

G\TI3

SPECIFY WHETHER A POST-TEST REQUIREMENT IS APPLICABLE. PROVIDE DETAILS IN COMMENT RECORD (‘Y’ OR ‘N’).

18

SECURITY CLASSIFICATION

1

G\SC

PROVIDE THE CLASSIFICATION OF THE PROJECT DATA. PROVIDE CLASSIFICATION GUIDE DESCRIPTION IN COMMENT RECORD.
UNCLASSIFIED – ‘U’
CONFIDENTIAL – ‘C’
SECRET – ‘S’
TOP SECRET – ‘T’
OTHER – ‘O’.

COMMENTS

19

COMMENTS

1600

G\COM

INFORMATION WHICH IS NEEDED TO COMPLETE DATA REQUESTED AND ANY OTHER INFORMATION DESIRED.
